THE BLACK BRANT PROJECT on the verge of insanity

  Fin Tip Side View Root Edge
Core
Layer

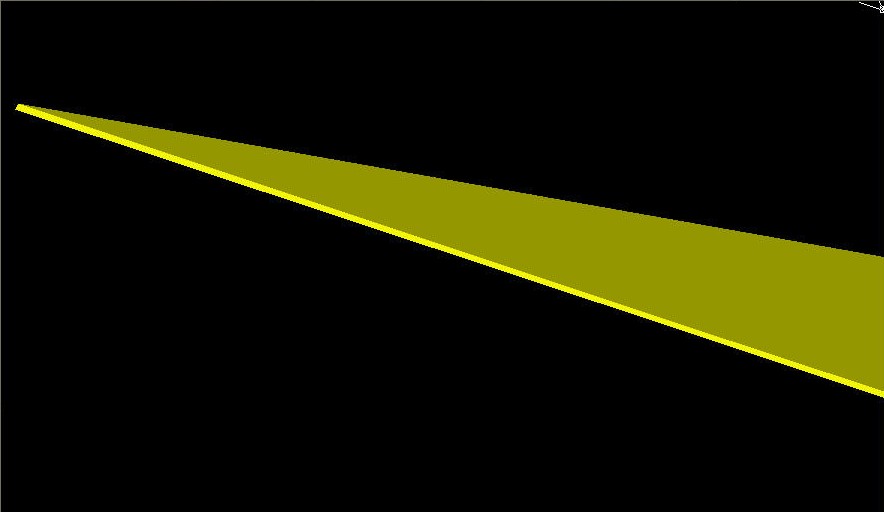

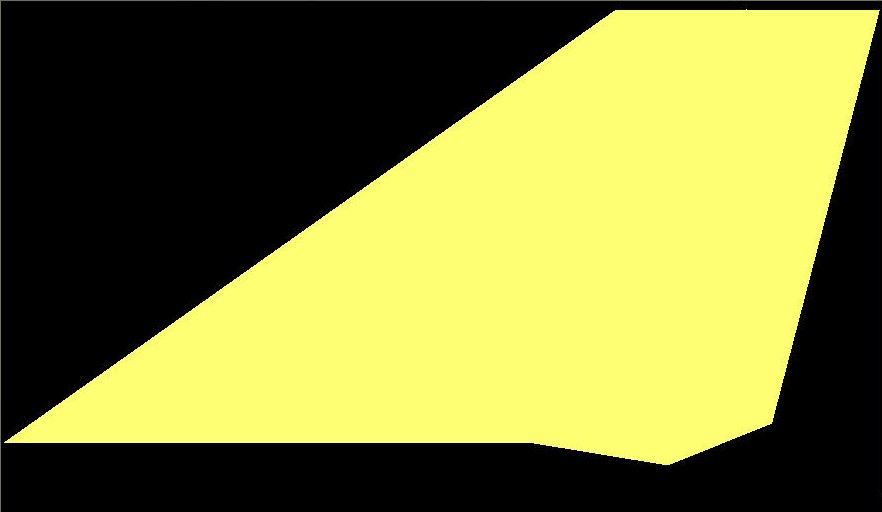

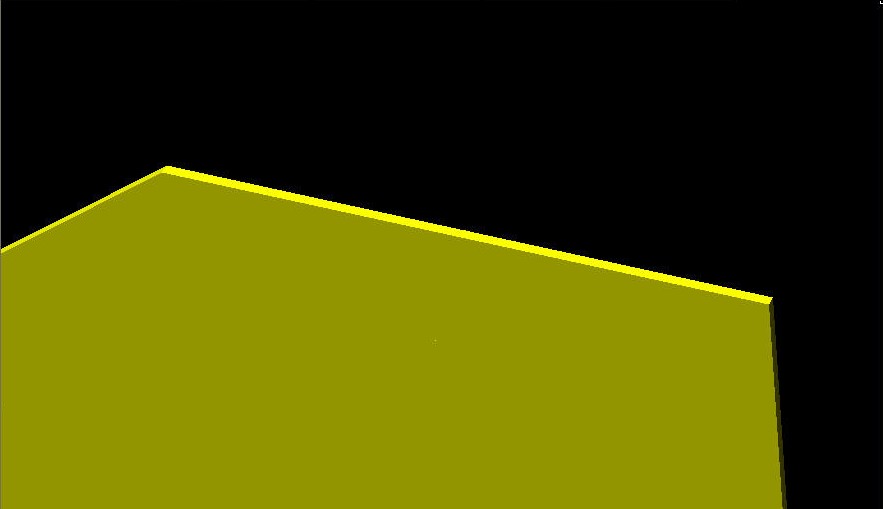

The first or innermost layer consists of 1/4" Birch plywood.



Backing
Layer

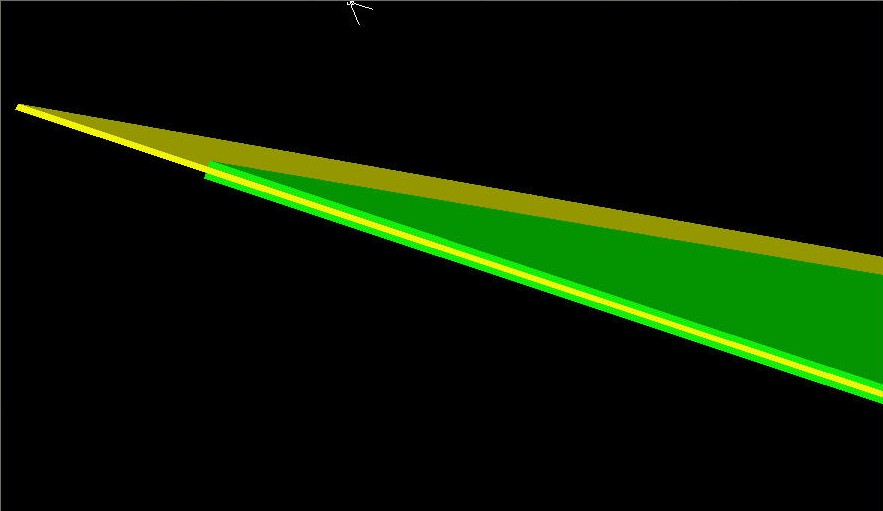

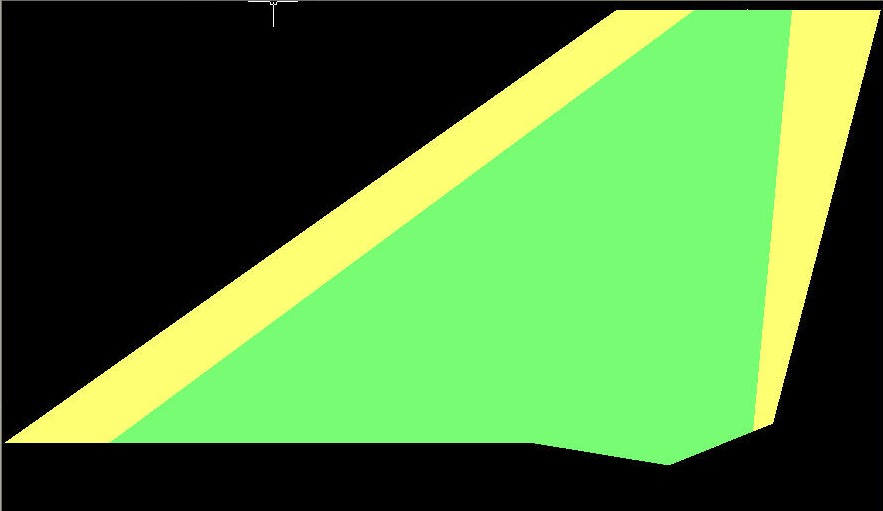

Laying on top of the 1/4" Birch core, is an additional layer of 1/4" Birch on both sides called the backing layer. This layer will increase the thickness of the center section and the fin tab (not show) to 3/4"

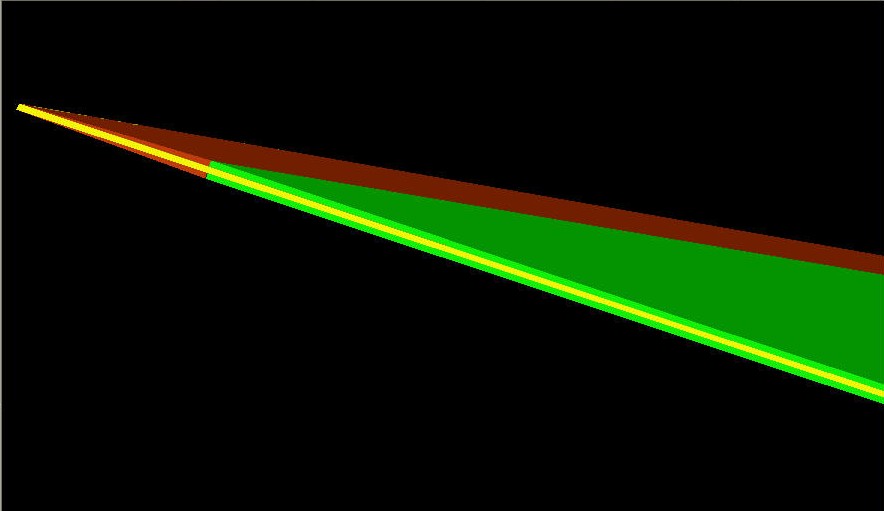

Foam Leading Edges

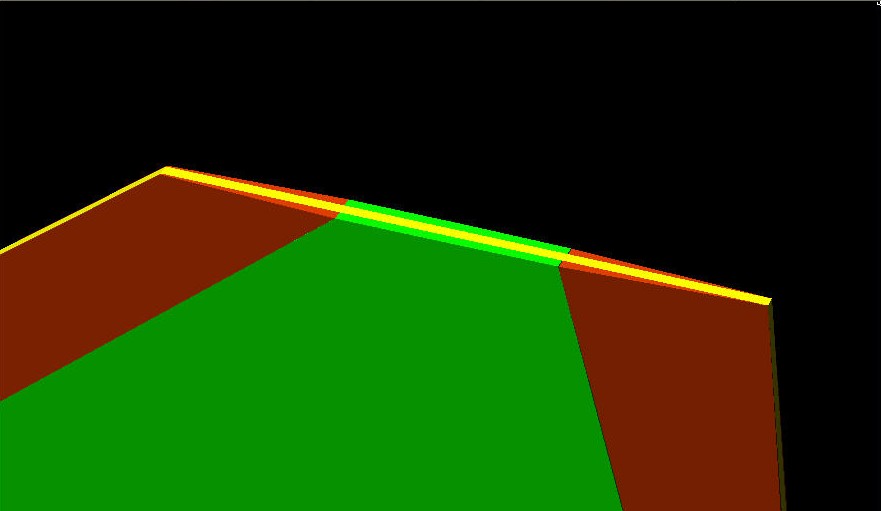

The leading a trailing edges will be covered in foam and shaped to form a transition from the innermost core to the backing layer.

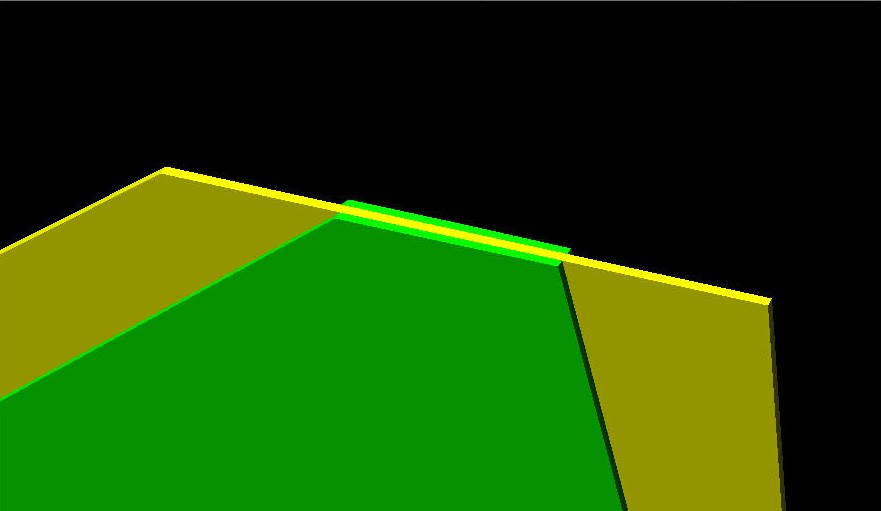

Foam Center Section

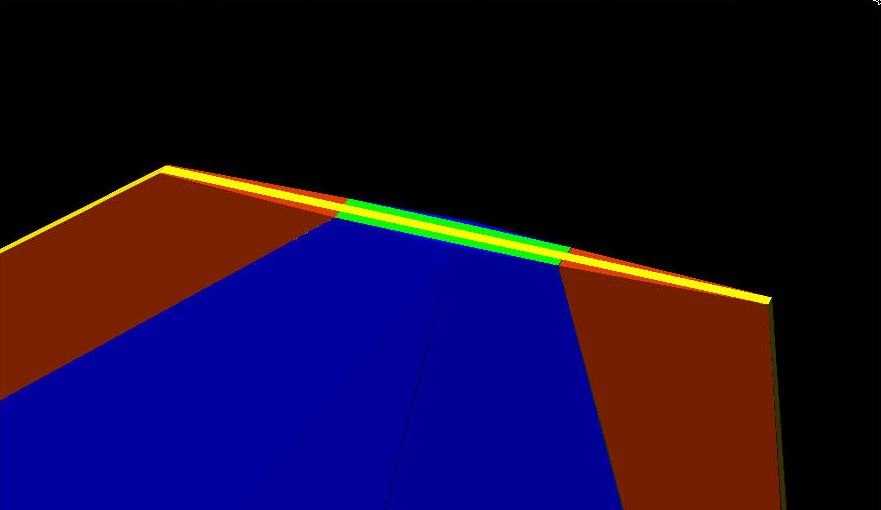

An additional layer of foam will be placed on top of the backing layer. This foam layer will give the fins it's final shape.

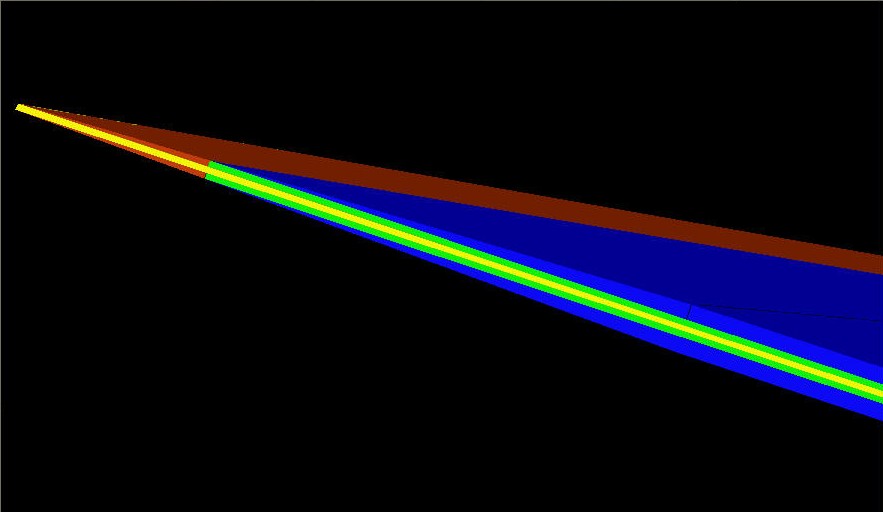

After the composite structure of the fins is built up (plywood, plywood, foam) the entire structure will be covered in three layers of carbon fiber. Each layer of carbon fiber will be oriented at 45 degrees from each other.
